This catalog is a good reference for some of the different options available on the Catalina 25. The part numbers in this catalog might be outdated and many of the parts will no longer be available. But it still has a lot of good information in it.
The Catalina 25 Parts Catalog is designed to provide an easy and efficient way for dealers to order parts. All parts and assemblies are listed alphabetically under six main categories found in the index:
Hull and Deck
Engine

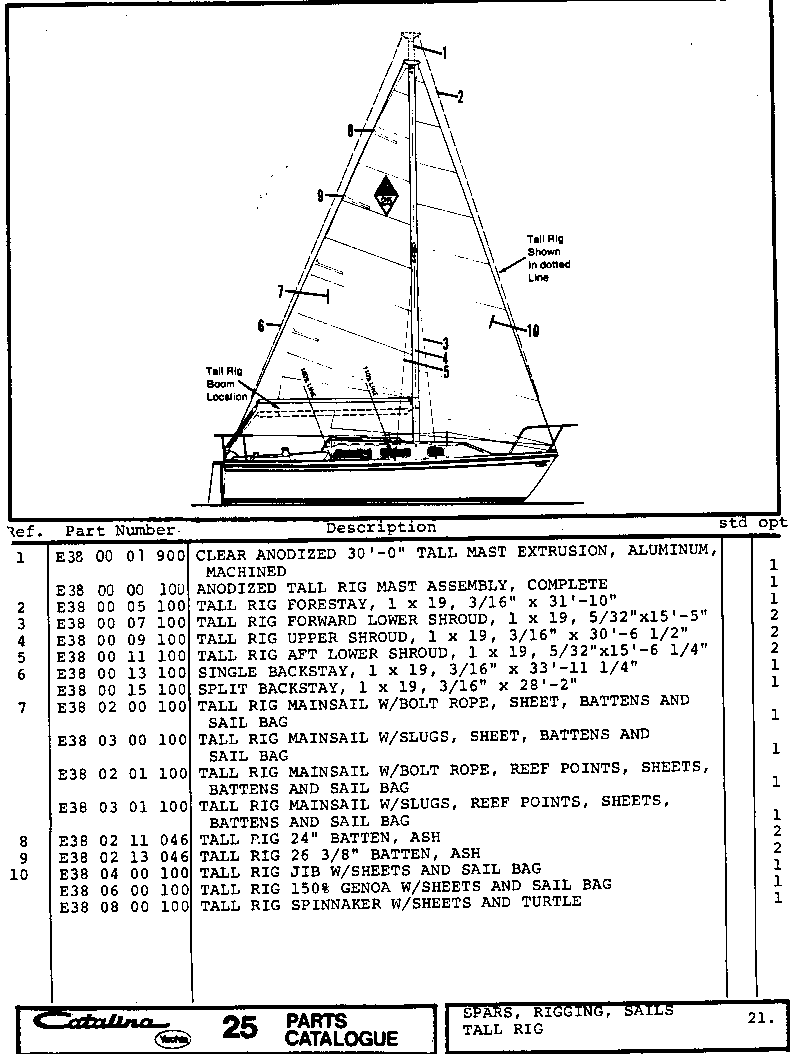

Spars, Rigging, Sails
Plumbing
Interior
Electrical
Refer to the page number in the right hand column to locate the part in the main body of the catalogue.
The parts illustrated are assigned a reference number. If the part is not shown, then it is listed in close proximity to the other related parts.
Fastener Kits, indicated by the suffix "P' are listed below each part. Each kit consists of all the fasteners needed for fastening one part only.
In the two right hand columns on the page, the total number of parts required for each standard boat is listed under "standard," if the part is an option the total number needed for the installation of the option is listed under "option".
(1) Give Full Part Number of Part and/or Fastener Kit.
(2) Give the number of Parts requested.
(3) Specify color when necessary.
All parts orders must be in writing, on company purchase orders or stationery, include purchase order number on all correspondence.
DESCRIPTION PAGE NUMBER
HULL AND DECK
Anchor Locker, Rub Rail ............. (2)
Blocks, Winches, Cleats ............. (8)

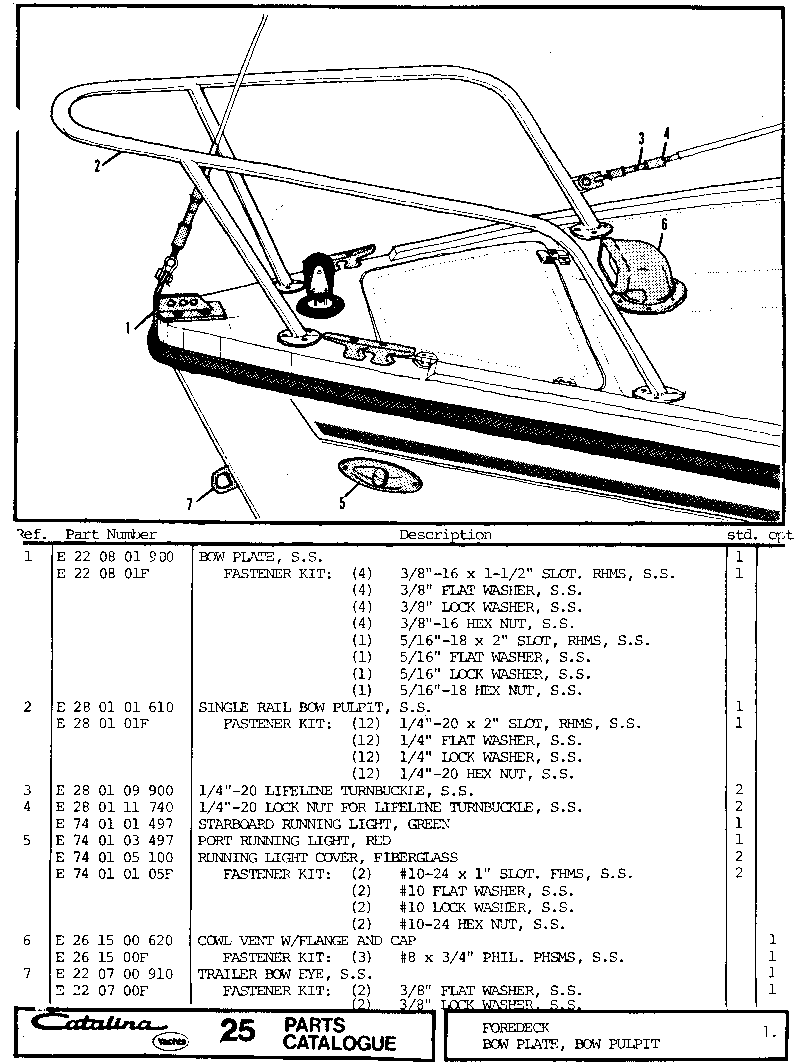

Bow Pulpit .......................... (1)
Chain Plate Assembly ................ (4)
Cockpit Coaming Compartment ......... (8)
Cockpit Seat Hatch Assembly ......... (9)
Forward Hatch ....................... (3)
Gudgeons ............................ (11)
Handrails ........................... (4)
Hull Identification Plate ........... (9)
Jib Track ........................... (5)
Lifelines ........................... (8)
Logo''Catalina 25" .................. (8)
Main Hatch Assembly ................. (6),(7)
Mast Steps .......................... (4)
Mooring Cleats ...................... (2)
Pop Top Enclosure Curtain ........... (5)
Pop Top Hatch Assembly .............. (36)

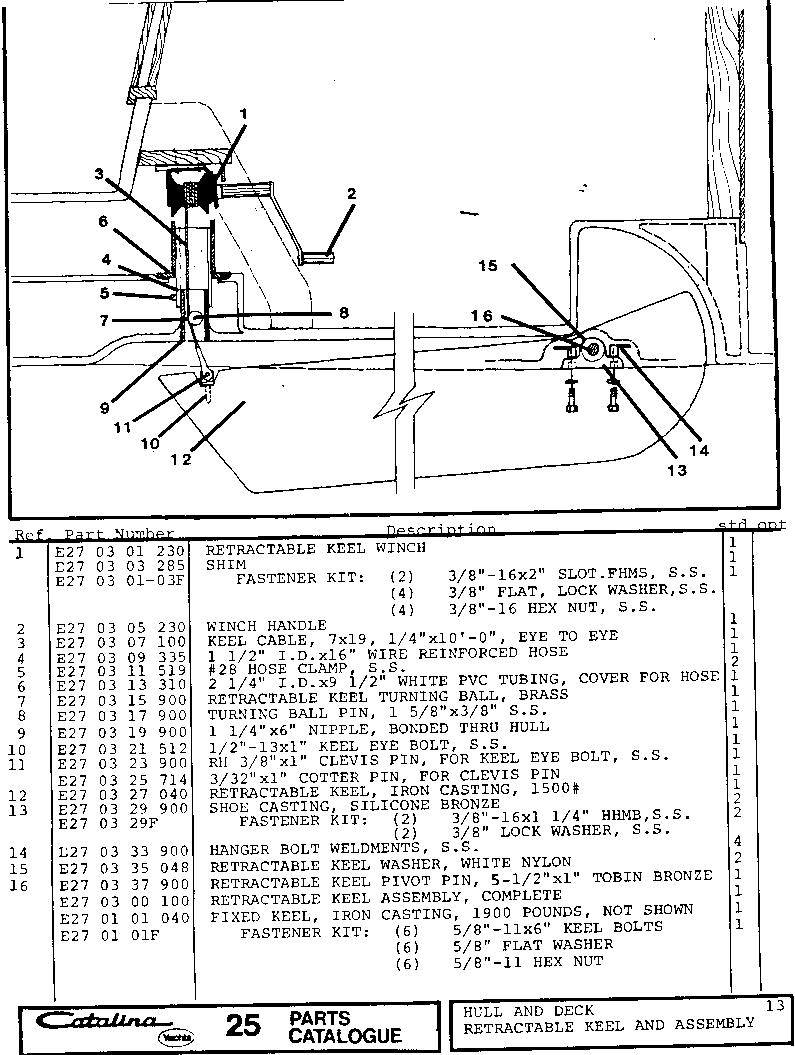

Retractable Keel Assembly ........... (13)
Rub Rail Assembly ................... (2)
Rudder Assembly ..................... (12)
Stanchions .......................... (4)
Stern Pulpit ........................ (10)
Tiller Assembly ..................... (12)
Trailer Bow Eye ..................... (1)
Traveler and Controls ............... (10)
Vents ............................... (10)
Windows ............................. (5)
SPARS, RIGGING, SAILS
Boom Assembly ....................... (16)
Boom Vang ........................... (19)
Genoa Track ......................... (5)
Jiffy Reefing ....................... (19)
Mainsail Cover ...................... (20)
Mast Assembly ....................... (14), (15), (16)
Sails and Sheets .................... (20)
Spinnaker Gear ...................... (22), (23)
Split Backstay with Tension Adjuster (18)
Standing Rigging .................... (17)
Tail Rig ............................ (21)
Turnbuckles ......................... (1)
INTERIOR
Bulkheads ........................... (27), (30), (32)
Carpeting ........................... (25)
Compression Post .................... (30), (32)
Curtains ............................ (28), (31)
Cushions ............................ (25), (26)
Doors ............................... (27), (30)

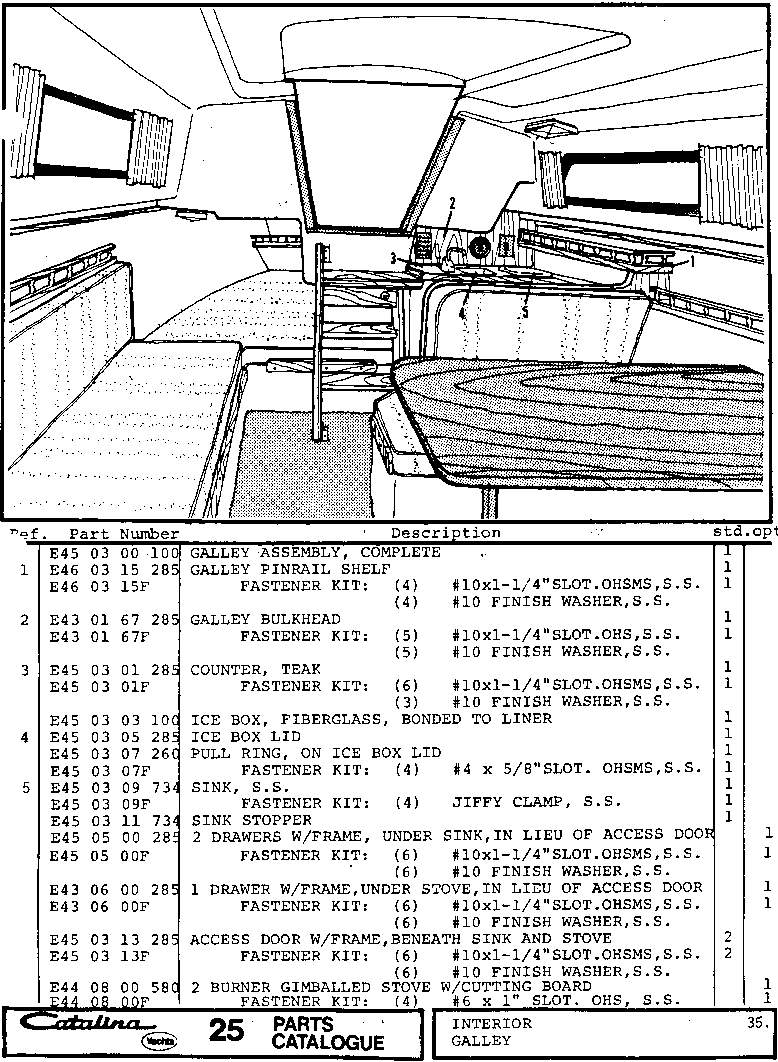

Galley Unit ......................... (35)
Hanging Locker ...................... (29)

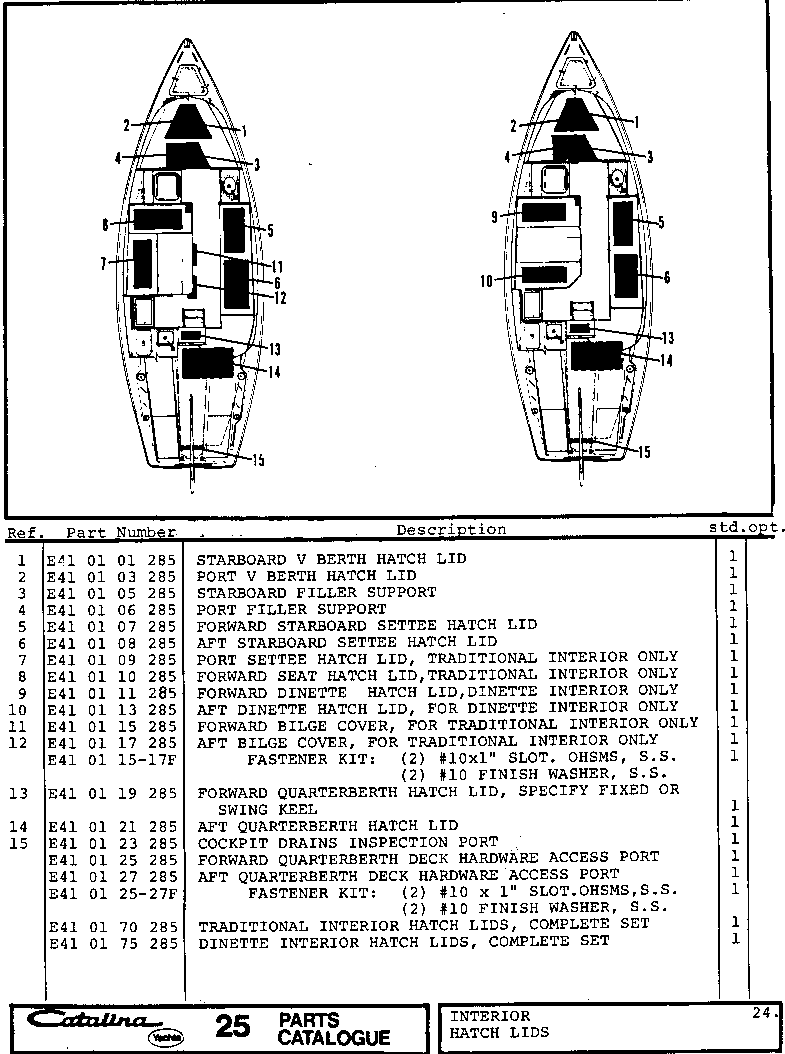

Hatch Lids .......................... (24), (26)
Interior Trim ....................... (27), (28), (30), (32), (33), (34)
Ladder .............................. (34)
Table ............................... (31)
Traditional Model ................... (32)
Vanity .............................. (28)
ENGINE
Outboard Bracket .................... (11)
PLUMBING
Bilge Pump Assembly ................. (9)
Fresh Water System .................. (37)
Marine and Portable Heads ........... (29), (38)
Holding Tank Assembly ............... (38)
ELECTRICAL
Battery ............................. (33)
Cabin Lights ........................ (33)
Combination Red and Green Bow Lights (1),(2)
D.C. Panel .......................... (33)

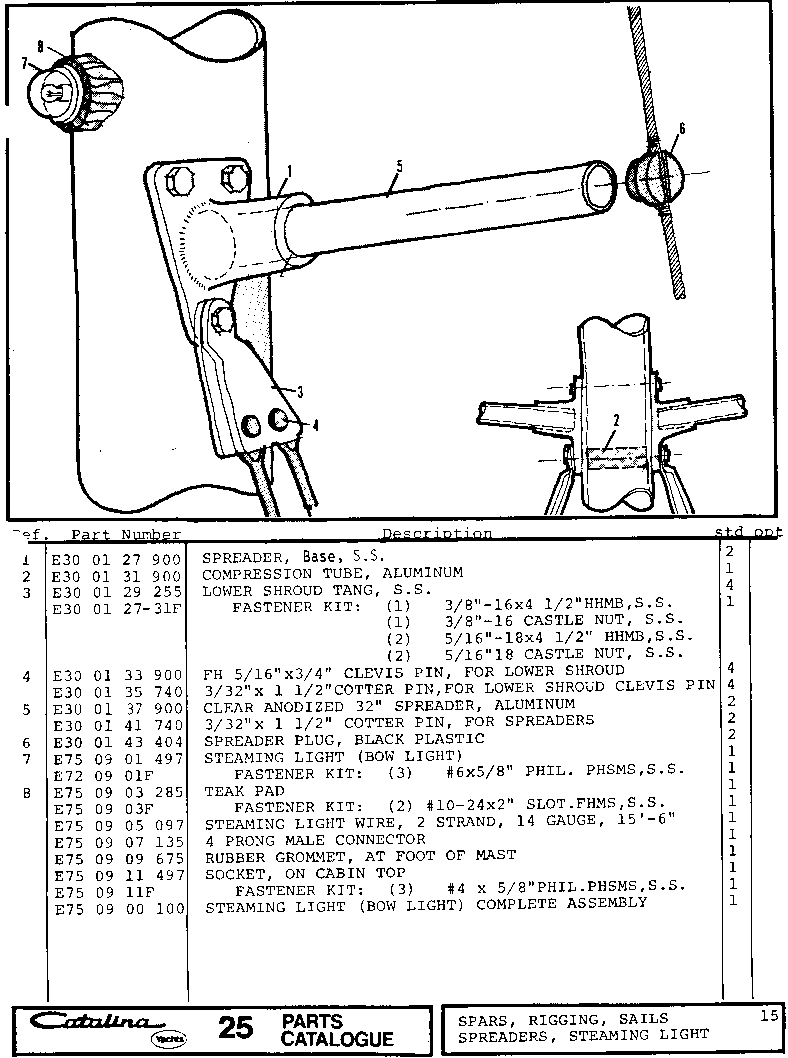

Steaming Light ...................... (15)
Stern Light ......................... (9), (10)
110 Volt Dock Side Power ............ (39)
